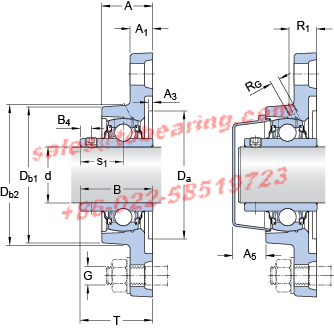

FYTB25TR轴承

d - 25 mm

A - 30 mm

A₁ - 12 mm

A₃ - H14 - 3.2 mm

A₅ - 18 mm

B - 34.1 mm

B₄ - 5 mm

D_a - H11 - 63.5 mm

D_b1 - 65 mm

D_b2 - 70 mm

J - 99 mm

H - 124 mm

L - 70 mm

H - 11.5 mm

s₁ - 19.8 mm

T - 38.8 mm

J₆ - 81 mm

J₇ - 12 mm

N₄ - 2 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 20.5 mm

R_α - 45 °

Basic dynamic load rating - C - 14 kN

Basic static load rating - C₀ - 7.8 kN

Fatigue load limit - P_u - 0.335 kN

Limiting speed - 4300 r/min

Mass bearing unit - 0.56 kg

Thread - G₂ - M6x0.75

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m
