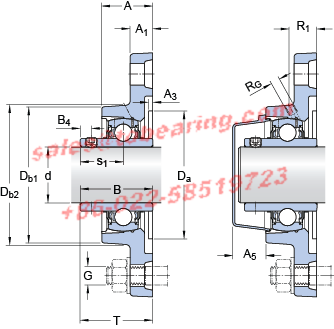

FYTB1.1/2TF轴承

d - 38.1 mm

A - 38.5 mm

A₁ - 14 mm

A₃ - H14 - 3.2 mm

A₅ - 23.5 mm

B - 49.2 mm

B₄ - 8 mm

D_a - H11 - 88.9 mm

D_b1 - 98 mm

D_b2 - 102 mm

J - 143.5 mm

H - 171.5 mm

L - 102 mm

H - 14 mm

s₁ - 30.2 mm

T - 54.2 mm

J₆ - 115.5 mm

J₇ - 16 mm

N₄ - 2 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 24.5 mm

R_α - 45 °

Basic dynamic load rating - C - 30.7 kN

Basic static load rating - C₀ - 19 kN

Fatigue load limit - P_u - 0.8 kN

Limiting speed - 4800 r/min

Mass bearing unit - 1.55 kg

Thread - G₂ - 5/16-24 UNF

Hexagonal key size for grub screw - H - 3.969 mm

Recommended tightening torque for grub screw - 6.5 N·m
