FY1.1/2FM轴承

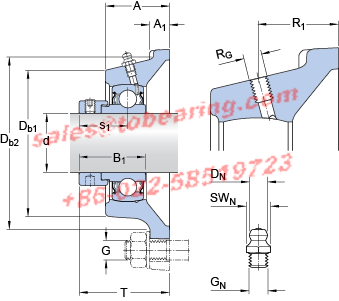

d - 38.1 mm

A - 38.5 mm

A₁ - 14 mm

B₁ - 43.7 mm

D_b1 - 98 mm

D_b2 - 106 mm

J - 101.5 mm

L - 130 mm

H - 14.5 mm

s₁ - 33.2 mm

T - 57.2 mm

J₆ - 118 mm

J₇ - 34 mm

N₄ - 4 mm

D_N - 6.579 mm

SW_N - 11.112 mm

G_N - 1/8-27 NPT

R_G - 1/8-27 NPT

R₁ - 25 mm

Basic dynamic load rating - C - 30.7 kN

Basic static load rating - C₀ - 19 kN

Fatigue load limit - P_u - 0.8 kN

Limiting speed - 4800 r/min

Mass bearing unit - 1.85 kg

Thread - G₂ - 3/8-24 UNF

Hexagonal key size for grub screw - H - 4.762 mm

Recommended tightening torque for grub screw - 16.5 N·m
