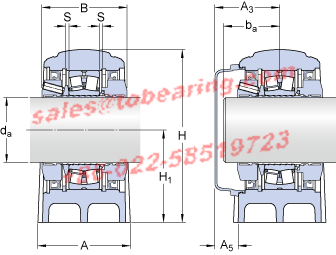

SYNT65LTF轴承

d_a - 65 mm

A - 80 mm

B - 71 mm

H - 158 mm

H₁ - 80 mm

H₂ - 30 mm

J - 230 mm

L - 280 mm

H - 24 mm

N₁ - 18 mm

S - 2.5 mm

J₆ - 254 mm

J₇ - 29 mm

N₄ - max. - 8 mm

A₃ - 73 mm

A₅ - 35.5 mm

b_a - min. - 38 mm

b_a - max. - 65 mm

Basic dynamic load rating - C - 193 kN

Basic static load rating - C₀ - 216 kN

Fatigue load limit - P_u - 24 kN

Limiting speed - 1350 r/min

Calculation factor - e - 0.24

Calculation factor - Y₁ - 2.8

Calculation factor - Y₂ - 4.2

Diameter - d_m - 92.5 mm

Basic Designation bearing - 22213 E

P_a - 20 kN

P_0° - 290 kN

P_55° - 380 kN

P_90° - 230 kN

P_120° - 155 kN

P_150° - 140 kN

P_180° - 210 kN

Mass bearing unit - 8.7 kg

Diameter - G - 16 mm
