SYNT35FTF轴承

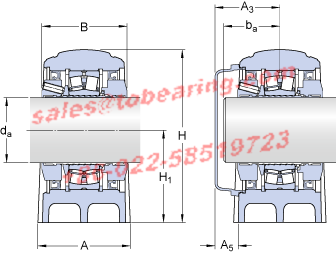

d_a - 35 mm

A - 60 mm

B - 65 mm

H - 111 mm

H₁ - 60 mm

H₂ - 25 mm

J - 170 mm

L - 205 mm

H - 20 mm

N₁ - 15 mm

J₆ - 185 mm

J₇ - 21 mm

N₄ - max. - 6 mm

A₃ - 50 mm

A₅ - 22 mm

b_a - min. - 34 mm

b_a - max. - 43 mm

Basic dynamic load rating - C - 86.5 kN

Basic static load rating - C₀ - 85 kN

Fatigue load limit - P_u - 9.3 kN

Limiting speed - 2050 r/min

Calculation factor - e - 0.31

Calculation factor - Y₁ - 2.2

Calculation factor - Y₂ - 3.3

Diameter - d_m - 53.5 mm

Basic Designation bearing - 22207 E

P_a - 15 kN

P_0° - 150 kN

P_55° - 250 kN

P_90° - 150 kN

P_120° - 95 kN

P_150° - 85 kN

P_180° - 105 kN

Mass bearing unit - 3.8 kg

Diameter - G - 12 mm
