SYFWK1.3/16LTHR轴承

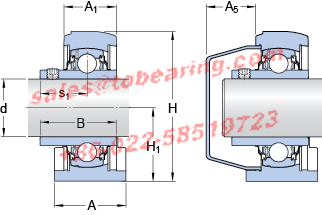

d - 30.162 mm

A - 43 mm

A₁ - 28 mm

B - 38.1 mm

H - 84 mm

H₁ - 42.9 mm

J - 76.2 mm

L - 101 mm

s₁ - 22.2 mm

Basic dynamic load rating - C - 16.3 kN

Basic static load rating - C₀ - 11.2 kN

Fatigue load limit - P_u - 0.475 kN

Limiting speed - 3800 r/min

Calculation factor - f₀ - 14

Weight - 0.52 kg

Size thread - G - M10

Thread length - G₁ - 12 mm

Hexagonal key size for grub screw - H - 3.175 mm

Recommended tightening torque for grub screw - 4 N·m

Housing - SYFWK 506 L

Bearing - YAR 206-103-2RFGR/HV

End cover - ECL 206
