SY30FM轴承

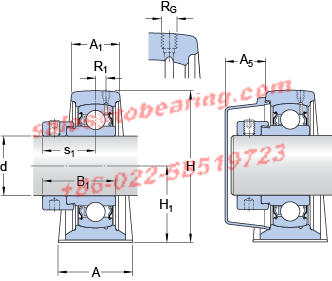

d - 30 mm

A - 40 mm

A₁ - 25 mm

A₅ - 20 mm

B₁ - 35.7 mm

H - 82 mm

H₁ - 42.9 mm

H₂ - 17 mm

J - 117.5 mm

J - max. - 127 mm

J - min. - 108 mm

L - 152 mm

H - 23.5 mm

N₁ - 14 mm

s₁ - 26.7 mm

J₆ - 140 mm

J₇ - 14 mm

N₄ - 4 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 3 mm

R_α - 45 °

Basic dynamic load rating - C - 19.5 kN

Basic static load rating - C₀ - 11.2 kN

Fatigue load limit - P_u - 0.475 kN

Limiting speed - 6300 r/min

Weight - 1.05 kg

Hexagonal key size for grub screw - H - 4 mm

Recommended tightening torque for grub screw - 6.5 N·m
