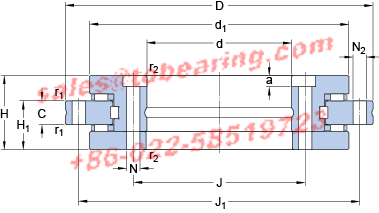

NRT80B轴承

d - 80 mm

D - 146 mm

H - 35 mm

d₁ - 130 mm

C - 12 mm

H₁ - 23.35 mm

J - 92 mm

J₁ - 138 mm

H - 5.6 mm

N₁ - 10 mm

N₂ - 4.6 mm

a - 4 mm

r₁ - min. - 0.3 mm

r₂ - min. - 0.3 mm

Basic dynamic load rating, radial direction - C - 55 kN

Basic static load rating, radial direction - C₀ - 102 kN

Basic dynamic load rating, axial direction - C - 37.5 kN

Basic static load rating, axial direction - C₀ - 200 kN

Limiting speed for grease lubrication - 350 r/min

Limiting speed for oil lubrication - 700 mm/min

Axial Preload - 1.3 N

Axial unloading force - 2.8 kN

Frictional moment - C_RL - 3 N·m

axial stiffness - 5 N/micron

radial stiffness - 3.1 N/micron

Moment stiffness - 7000 kN·m/mrad

Mass bearing - 2.3 kg

Guideline diameter - 200 mm

Size - G - M5

Number of bolts - 3

Angle between bolts - 120 °

Size bolts - M4

Pitch - &alfa; - 30 °

Number of bolts - 9

Tightening torque - 4.5 N·m

Size bolts - M5

Pitch - &alfa; - 30 °

Number of bolts - 10

Tightening torque - 8.5 N·m

Size - M5

Number of bolts - 2
