FYWK1.3/16YTH轴承

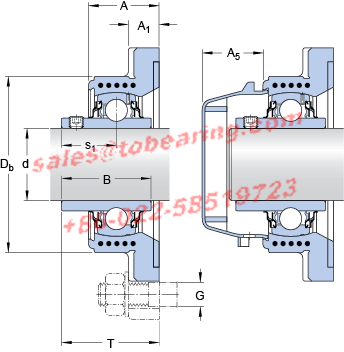

d - 30.162 mm

A - 33 mm

A₁ - 15.3 mm

A₅ - 30.5 mm

B - 38.1 mm

D_b - 78 mm

J - 82.5 mm

L - 108 mm

H - 12.3 mm

s₁ - 22.2 mm

T - 42.2 mm

Basic dynamic load rating - C - 16.3 kN

Basic static load rating - C₀ - 11.2 kN

Fatigue load limit - P_u - 0.475 kN

Limiting speed - 3800 r/min

Mass bearing unit - 0.53 kg

Thread - G₂ - 1/4-28 UNF

Hexagonal key size for grub screw - H - 3.175 mm

Recommended tightening torque for grub screw - 4 N·m
