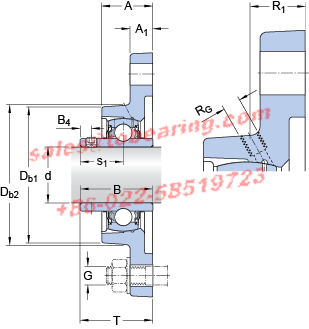

FYT1.5/16TF轴承

d - 33.338 mm

A - 35 mm

A₁ - 13 mm

B - 42.9 mm

B₄ - 6 mm

D_b1 - 88 mm

D_b2 - 96 mm

J - 130 mm

H - 156 mm

L - 96 mm

H - 14.5 mm

s₁ - 25.4 mm

T - 46.4 mm

J₆ - 106 mm

J₇ - 15 mm

N₄ - 2 mm

D_N - 6.579 mm

SW_N - 11.112 mm

G_N - 1/8-27 NPT

R_G - 1/8-27 NPT

R₁ - 21.5 mm

R_α - 45 °

Basic dynamic load rating - C - 25.5 kN

Basic static load rating - C₀ - 15.3 kN

Fatigue load limit - P_u - 0.655 kN

Limiting speed - 5300 r/min

Mass bearing unit - 1.25 kg

Thread - G₂ - 5/16-24 UNF

Hexagonal key size for grub screw - H - 3.969 mm

Recommended tightening torque for grub screw - 6.5 N·m
