FYT1.1/8FM轴承

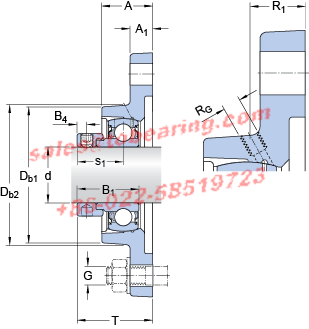

d - 28.575 mm

A - 32.5 mm

A₁ - 13 mm

B₁ - 35.7 mm

B₄ - 5.95 mm

D_b1 - 77 mm

D_b2 - 83 mm

J - 116.5 mm

H - 141.5 mm

L - 83 mm

H - 12.5 mm

s₁ - 26.7 mm

T - 46.7 mm

J₆ - 98.5 mm

J₇ - 12.5 mm

N₄ - 2 mm

D_N - 6.579 mm

SW_N - 11.112 mm

G_N - 1/8-27 NPT

R_G - 1/8-27 NPT

R₁ - 21 mm

R_α - 45 °

Basic dynamic load rating - C - 19.5 kN

Basic static load rating - C₀ - 11.2 kN

Fatigue load limit - P_u - 0.475 kN

Limiting speed - 6300 r/min

Mass bearing unit - 0.9 kg

Thread - G₂ - 5/16-24 UNF

Hexagonal key size for grub screw - H - 3.969 mm

Recommended tightening torque for grub screw - 6.5 N·m
