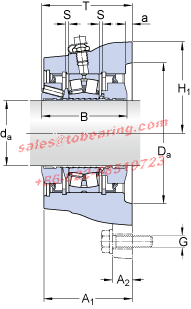

FYNT90L轴承

d_a - 90 mm

A₁ - 92 mm

A₂ - 30 mm

T - max. - 93.5 mm

B - 86 mm

H - 250 mm

H₁ - 125 mm

J - 198 mm

L - 250 mm

D_a - 200 mm

H - 23 mm

a - 6 mm

S - 2.5 mm

J₅ - 112 mm

J₆ - 72 mm

N₄ - max. - 8 mm

Basic dynamic load rating - C - 325 kN

Basic static load rating - C₀ - 375 kN

Fatigue load limit - P_u - 39 kN

Limiting speed - 2100 r/min

Calculation factor - e - 0.24

Calculation factor - Y₁ - 2.8

Calculation factor - Y₂ - 4.2

Diameter - d_m - 125 mm

Basic Designation bearing - 22218 E

P_a - 35 kN

P₁ - 180 kN

P₂ - 185 kN

P₃ - 565 kN

Mass bearing unit - 18 kg

Diameter - G - 20 mm
