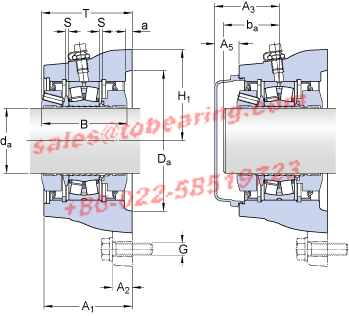

FYNT70L轴承

d_a - 70 mm

A₁ - 82 mm

A₂ - 25 mm

T - max. - 81.3 mm

B - 72 mm

H - 196 mm

H₁ - 98 mm

J - 152 mm

L - 196 mm

D_a - 150 mm

H - 19 mm

a - 6 mm

S - 2.5 mm

J₅ - 87 mm

J₆ - 54 mm

N₄ - max. - 8 mm

A₃ - 80 mm

A₅ - 38.5 mm

b_a - min. - 38 mm

b_a - max. - 70 mm

Basic dynamic load rating - C - 208 kN

Basic static load rating - C₀ - 228 kN

Fatigue load limit - P_u - 25.5 kN

Limiting speed - 2600 r/min

Calculation factor - e - 0.22

Calculation factor - Y₁ - 3

Calculation factor - Y₂ - 4.6

Diameter - d_m - 97.5 mm

Basic Designation bearing - 22214 E

P_a - 20 kN

P₁ - 150 kN

P₂ - 140 kN

P₃ - 340 kN

Mass bearing unit - 11 kg

Diameter - G - 16 mm
