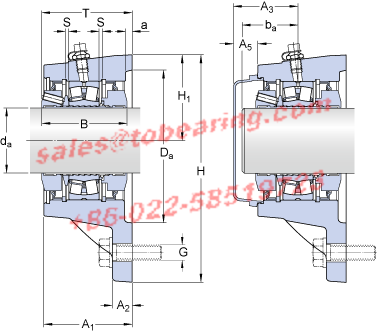

FYNT45L轴承

d_a - 45 mm

A₁ - 66 mm

A₂ - 15 mm

T - max. - 72.5 mm

B - 65 mm

H - 160 mm

H₁ - 60 mm

J - 160 mm

L - 179 mm

D_a - 100 mm

H - 14 mm

a - 5 mm

S - 2.5 mm

J₁ - 71 mm

J₂ - 20 mm

J₃ - 53 mm

J₄ - 45.5 mm

J₅ - 18 mm

J₆ - 72 mm

N₄ - max. - 6 mm

A₃ - 52 mm

A₅ - 23 mm

b_a - min. - 34 mm

b_a - max. - 43 mm

Basic dynamic load rating - C - 102 kN

Basic static load rating - C₀ - 98 kN

Fatigue load limit - P_u - 10.8 kN

Limiting speed - 3500 r/min

Calculation factor - e - 0.26

Calculation factor - Y₁ - 2.6

Calculation factor - Y₂ - 3.9

Diameter - d_m - 65 mm

Basic Designation bearing - 22209 E

P_a - 15 kN

P₁ - 100 kN

P₂ - 65 kN

P₃ - 105 kN

Mass bearing unit - 3.9 kg

Diameter - G - 12 mm
