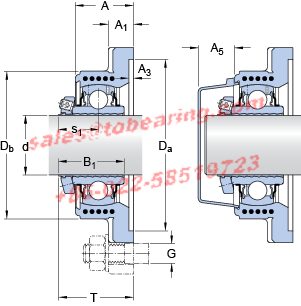

FYK25LEF轴承

d - 25 mm

A - 31 mm

A₁ - 15 mm

A₃ - H14 - 3.2 mm

A₅ - 18 mm

B₁ - 33.2 mm

D_a - H11 - 74.6 mm

D_b - 65 mm

J - 70 mm

L - 95 mm

H - 12.3 mm

s₁ - 21.2 mm

T - 40.2 mm

Basic dynamic load rating - C - 14 kN

Basic static load rating - C₀ - 7.8 kN

Fatigue load limit - P_u - 0.335 kN

Limiting speed - 8500 r/min

Mass bearing unit - 0.32 kg

Thread - G₂ - M5

Hexagonal key size for grub screw - H - 2.5 mm

Recommended tightening torque for grub screw - 4.2 N·m
