FYJ3/4TF轴承

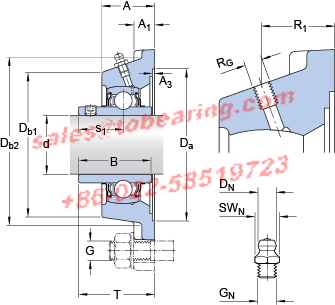

d - 19.05 mm

A - 25.5 mm

A₁ - 11 mm

A₃ - H14 - 3.2 mm

B - 31 mm

D_a - H11 - 68.3 mm

D_b1 - 58 mm

D_b2 - 64 mm

J - 64 mm

L - 86 mm

H - 12 mm

s₁ - 18.3 mm

T - 33.3 mm

J₆ - 74 mm

J₇ - 16 mm

N₄ - 4 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 17 mm

Basic dynamic load rating - C - 12.7 kN

Basic static load rating - C₀ - 6.6 kN

Fatigue load limit - P_u - 0.28 kN

Limiting speed - 8500 r/min

Mass bearing unit - 0.54 kg

Thread - G₂ - 1/4-28 UNF

Hexagonal key size for grub screw - H - 3.175 mm

Recommended tightening torque for grub screw - 4 N·m
