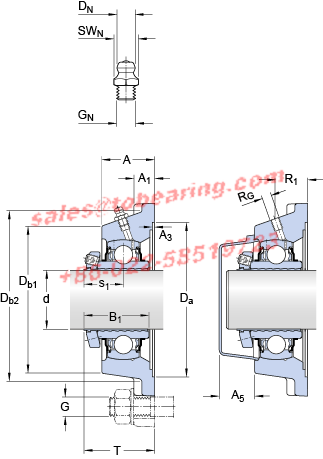

FY30LF轴承

d - 30 mm

A - 32.5 mm

A₁ - 13 mm

A₃ - H14 - 3.2 mm

A₅ - 20 mm

B₁ - 37 mm

D_a - H11 - 93.7 mm

D_b1 - 76 mm

D_b2 - 84 mm

J - 82.5 mm

L - 108 mm

H - 11.5 mm

s₁ - 23 mm

T - 43 mm

J₆ - 96 mm

J₇ - 24.5 mm

N₄ - 4 mm

D_N - 6.5 mm

SW_N - 7 mm

G_N - 1/4-28 SAE-LT

R_G - 1/4-28 UNF

R₁ - 21 mm

Basic dynamic load rating - C - 19.5 kN

Basic static load rating - C₀ - 11.2 kN

Fatigue load limit - P_u - 0.475 kN

Limiting speed - 6300 r/min

Mass bearing unit - 1.05 kg

Thread - G₂ - M5

Hexagonal key size for grub screw - H - 2.5 mm

Recommended tightening torque for grub screw - 4.2 N·m
