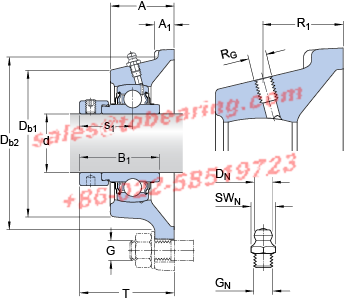

FY2.7/16WF轴承

d - 61.913 mm

A - 52 mm

A₁ - 17 mm

B₁ - 77.8 mm

D_b1 - 130 mm

D_b2 - 143 mm

J - 143 mm

L - 175 mm

H - 19 mm

s₁ - 46.8 mm

T - 80.8 mm

J₆ - 161 mm

J₇ - 49.5 mm

N₄ - 4 mm

D_N - 6.579 mm

SW_N - 11.112 mm

G_N - 1/8-27 NPT

R_G - 1/8-27 NPT

R₁ - 33.5 mm

Basic dynamic load rating - C - 52.7 kN

Basic static load rating - C₀ - 36 kN

Fatigue load limit - P_u - 1.5 kN

Limiting speed - 3400 r/min

Mass bearing unit - 4.25 kg

Thread - G₂ - 7/16-20 UNF

Hexagonal key size for grub screw - H - 5.556 mm

Recommended tightening torque for grub screw - 28.5 N·m
