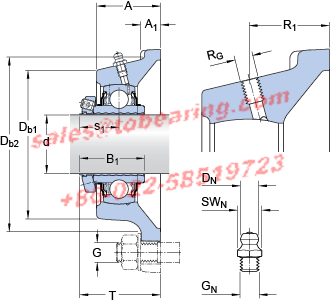

FY2.3/16LF/AH轴承

d - 55.562 mm

A - 47.5 mm

A₁ - 16 mm

B₁ - 49 mm

D_b1 - 122 mm

D_b2 - 134 mm

J - 130 mm

L - 162 mm

H - 19 mm

s₁ - 29 mm

T - 60 mm

J₆ - 148 mm

J₇ - 45 mm

N₄ - 4 mm

D_N - 6.579 mm

SW_N - 11.112 mm

G_N - 1/8-27 NPT

R_G - 1/8-27 NPT

R₁ - 31 mm

Basic dynamic load rating - C - 43.6 kN

Basic static load rating - C₀ - 29 kN

Fatigue load limit - P_u - 1.2 kN

Limiting speed - 3600 r/min

Mass bearing unit - 3.2 kg

Thread - G₂ - M6

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 7.4 N·m
