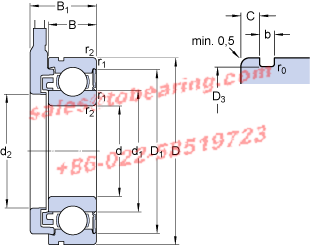

BMD-6206/064S2/UA108A轴承

d - 30 mm

D - 62 mm

B₁ - 22.2 mm

B - 16 mm

d₁ - - 40.36 mm

d₂ - 37.4 mm

D₁ - - 54.1 mm

D₂ - 58.1 mm

D₃ - 59.61 mm

C - 3.28 mm

b - 1.9 mm

r₀ - 0.6 mm

r_1,2 - min. - 1 mm

L - 565 mm

Tolerance cable length L - ± - 10 mm

d_a - min. - 35 mm

d_b - min. - 35 mm

d_b - max. - 40 mm

D_a - max. - 57 mm

r_a - max. - 1 mm

Cable connector type - AMP Superseal

Number of pulses per revolution - N - 64

Period accuracy - ± 4 %

Phase shift output signal - 90 °

Tolerance phase shift output signal - ± 30 °

Basic dynamic load rating - C - 19.5 kN

Basic static load rating - C₀ - 11.2 kN

Fatigue load limit - P_u - 0.475 kN

Limiting speed - 7500 r/min

Calculation factor - k_r - 0.025

Calculation factor - f₀ - 14

Mass sensor unit - 0.242 kg

Snap ring - SP 62
