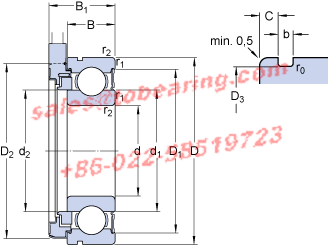

BMB-6208/080S2/UB008A轴承

d - 40 mm

D - 80 mm

B₁ - 24.2 mm

B - 18 mm

d₁ - - 52.6 mm

d₂ - 48 mm

D₁ - - 69.8 mm

D₂ - 75.06 mm

D₃ - 76.81 mm

C - 3.28 mm

b - 1.9 mm

r₀ - 0.6 mm

r_1,2 - min. - 1.1 mm

L - 546.1 mm

Tolerance cable length L - ± - 10 mm

d_a - min. - 46.5 mm

d_b - min. - 46.5 mm

d_b - max. - 47.4 mm

D_a - max. - 73.5 mm

r_a - max. - 1 mm

Cable connector type - Free cable end

Number of pulses per revolution - N - 80

Period accuracy - ± 5 %

Phase shift output signal - 90 °

Tolerance phase shift output signal - ± 30 °

Basic dynamic load rating - C - 30.7 kN

Basic static load rating - C₀ - 19 kN

Fatigue load limit - P_u - 0.8 kN

Limiting speed - 5600 r/min

Calculation factor - k_r - 0.025

Calculation factor - f₀ - 14

Mass sensor unit - 0.448 kg

Snap ring - SP 80
