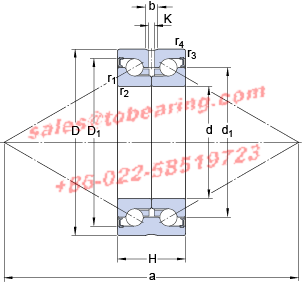

BEAS008032-2RZ轴承

d - 8 mm

D - 32 mm

H - 20 mm

d₁ - 19 mm

D₁ - 26.5 mm

b - 3.1 mm

K - 1.2 mm

r_1,2 - min. - 0.3 mm

r_3,4 - min. - 0.6 mm

a - 43 mm

d_a - min. - 12 mm

D_a - max. - 26 mm

r_a - max. - 0.3 mm

r_b - max. - 0.6 mm

Basic dynamic load rating - C - 12.5 kN

Basic static load rating - C₀ - 16.3 kN

Fatigue load limit - P_u - 0.6 kN

Limiting speed - 8800 r/min

Preload - 300 N

Frictional moment - 0.04 N·m

Static Axial rigidity - 250 N/micron

Mass bearing - 0.09 kg
