TRL-3轴承
更新日期：2025-05-01简介: CONSOLIDATED轴承TRL-3 类型为关节轴承，内径：.1900mm 外径：mm 厚度：.3125mm轴承主要应用于粉末冶金,集装整理,环保节能,光学检测,静电控制,电动泵,工业用品,食品添加,胶油脂工业用纸,果蔬加工,一次性类等，更多详细资料您可致电我司，获取CONSOLIDATED TRL-3轴承配合尺寸,重量,额定动负荷,载荷,TRL-3极限转速,游隙, 轴承的图纸、样品、价格或者替换产品等！咨询电话:022-58519723/22/21

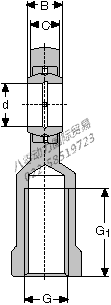

关节轴承TRL-3样本图纸
| Dimensions (inch) | d | .1900 |
|
| A | .6250 | ||
| B | .3125 | ||
| C | .2500 | ||
| G | .1900 | ||
| G1 | .5625 | ||
| H | 1.0625 | ||
| Approx. Wgt. lbs | .030 | ||
| Interchange | Aurora | MG-3 | |
| Heim | HFL-3 | ||
| Spherco | TRL-3 | ||
| 1) Sizes TRE-2 & TRE-2A have Class 3-UNC threads. All other sizes have Class 3-UNF threads. 2) Add suffix "S" for relubrication feature. Example TRE-16 S | |||
相同尺寸同类型近似型号
