SN-517..20217-K轴承
更新日期：2025-05-01简介: CONSOLIDATED轴承SN-517..20217-K 类型为轴承座，内径：75mm 外径：mm 厚度：90mm轴承主要应用于医用服饰,煤炭,饮料生产,触角电位,活动房等,噪声检查,机床元件,工业软管接头,工业用布,起重链条,电动液压升降平台等，更多详细资料您可致电我司，获取CONSOLIDATED SN-517..20217-K轴承配合尺寸,重量,额定动负荷,载荷,SN-517..20217-K极限转速,游隙, 轴承的图纸、样品、价格或者替换产品等！咨询电话:022-58519723/22/21

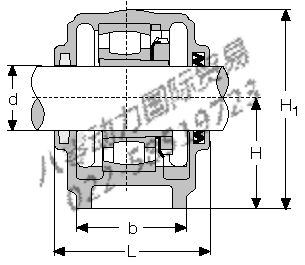

轴承座SN-517..20217-K样本图纸
| Dimensions (metric) | d | 75 |
|
| b | 90 | ||
| E | 260 | ||
| A | 320 | ||
| L | 125 | ||
| H | 95 | ||
| H1 | 185 | ||
| Housing Only Approx. Wgt.lbs | 21.600 | ||
| Additional Seals / Seal No. | SN-17-TA | ||
| Additional Seals / Seal Qty. | 2 | ||
| Stabilizing Rings Req'd / No. | FR 150/9 | ||
| Stabilizing Rings Req'd / Qty. | 2 | ||
| Suitable Adapter | H-217x75mm. | ||
| Suitable for Bearings | 20217-K | ||
| Interchange | FAG | SN 517 | |
| SKF | SN 517 | ||
| STEYR | SN 517 | ||
| 1) The above are cast-iron split housings and are equipped with felt seals. 2) Felt seals can be substituted with SN-.. TA rubber seals. These seals are not interchangeable with housings from other manufacturers. Consult factory for availability. 3) The above series has two bolt bases and two bolt caps. | |||
