CRSBCE-28轴承
更新日期：2025-11-04简介: CONSOLIDATED轴承CRSBCE-28 类型为滚针轴承，内径：mm 外径：mm 厚度：1.0000mm轴承主要应用于科学仪器,户外设备,正畸材料,板材行业,汽车减震器,立式加工,焊接设备,万向节类,冶金模具,酿酒设备,传感器类等，更多详细资料您可致电我司，获取CONSOLIDATED CRSBCE-28轴承配合尺寸,重量,额定动负荷,载荷,CRSBCE-28极限转速,游隙, 轴承的图纸、样品、价格或者替换产品等！咨询电话:022-58519723/22/21

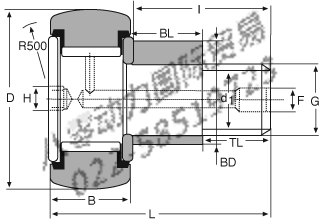

滚针轴承CRSBCE-28样本图纸
| Dimensions (inch) | F | .1875 |
Crowned O.D. CRSBE |
| D | 1.7500 | ||
| d1 | 1.0000 | ||
| B | 1.0000 | ||
| BD | 1.0000 | ||
| BL | .8750 | ||
| L | 2.7812 | ||
| I | 1.7500 | ||
| TL | .8750 | ||
| G | 3/4 -16 | ||
| Ecc | .030 | ||
| H | .3125 | ||
| Approx. Wgt. lbs | 1.070 | ||
| Interchange | INA | CFE28 PPY | |
| McGill | CCFE-1 3/4 -SB | ||
| RBC | CS-56-LWX | ||
| Smith | CR-1 3/4 -XBCE | ||
| Torrington | CRSBCE-28 | ||
| * Load ratings can vary between manufacturers. 1) Sizes CRSB(C)E-8-1 and CRSB(C)E-10-1 cannot be relubricated. Sizes CRSB(C)E-12 through CRSB(C)E-64 have relubrication hole at thread end only. 2) All sealed Cam Followers are prelubricated. 3) All sealed Cam Followers will have a black oxide finish on all exposed surfaces. | |||
