CF16轴承

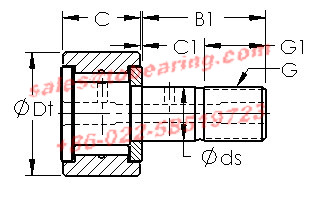

(dimensions in inches)

Bearing Type - Full Complement

Dynamic Load Rating (Cr) - 1,730

Static Load Rating (Cor) - 3,100

Max Speed (Grease) (X1000 RPM) - 5,000

Tire Outer Dia. (Dt) - 1.000

Stud Dia. (ds) - 0.438

Tire Width (C) - 0.625

Tire Washer Width (C1) - 0.031

Total Length (B) - 1.654

Stud Length (B1) - 1.000

Threads (G) - 7/16-20 UNF

Thread Length (G1) - 0.5

Weight (g) - 72.00

Material - Stud and Roller head: Hardened carbon steel alloy, Needle rollers - 52100 Chrome steel or equivalent

Standard finish is black oxide.

The stud has a screwdriver slot or hexagonal hole for mounting.

Some sizes are available with crowned outer race tires.

Some sizes are available with integral seals.

The load rating is based on a track hardness of HRc40 minimum.

The stud has an axially drilled hole for lubrication.
